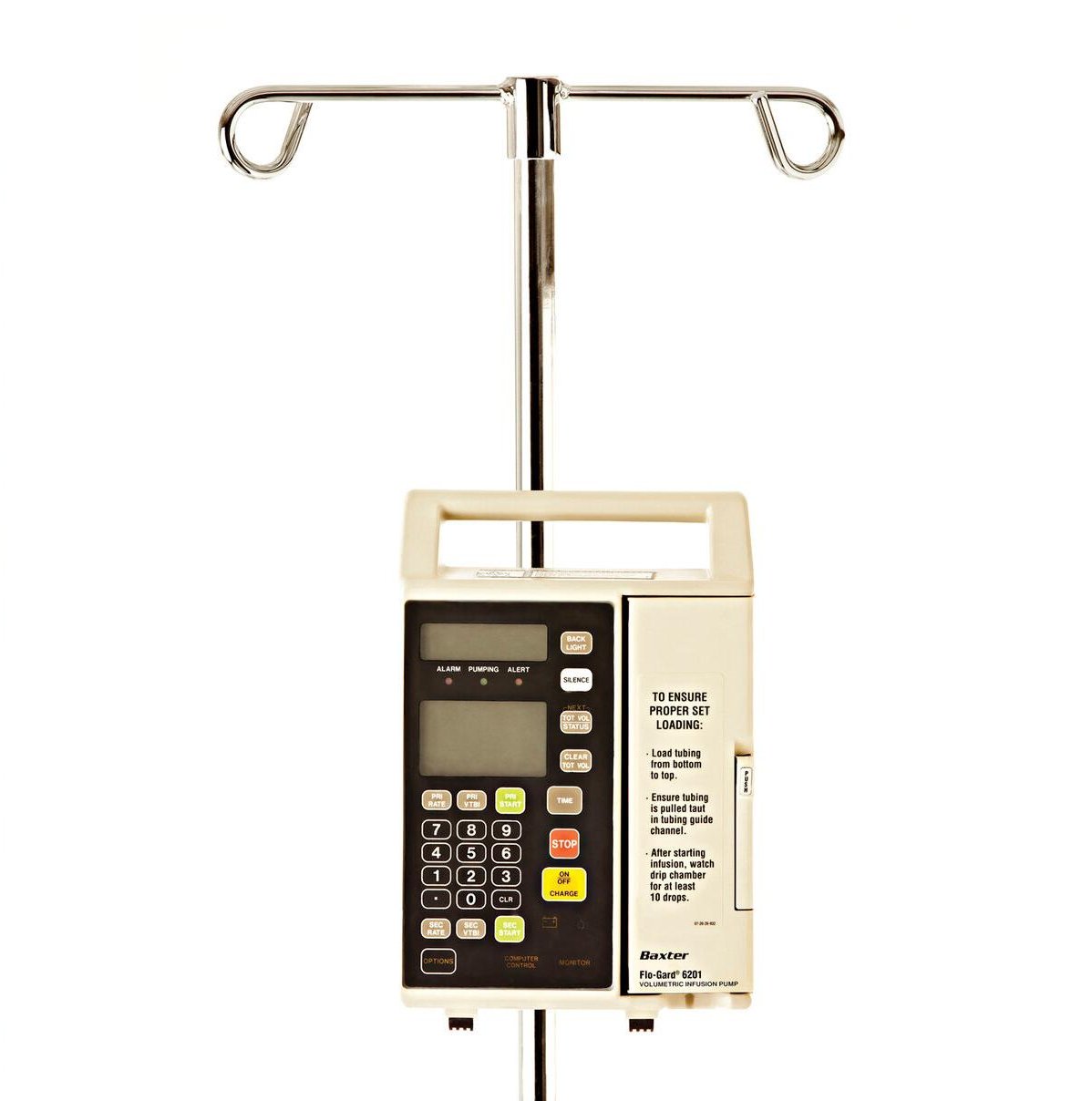

Baxter 6201 Infusion Pump

Repairs

• Manufacture Trained Staff
• Refurbished Manufacture Parts Used
• Manufacture Calibration (Available Onsite!)
• “Preventive Maintenance Procedures (every 12 months or as required)”
• Baxter 6201 Service Manual p. 46 Table 6.2

Troubleshooting

• Air Alarm
• Occlusion Alarm
• Low Battery
• Door Issues
• Error F-1 to F-99

We can help resolve all these issues in a timely manner!

Contact us today to learn more!  Phone: 613-371-0468 or Email: info@pivetconsult.com

Operator's manual

The Flo-Gard® 6201 Volumetric Infusion Pump from Baxter can deliver a wide variety of fluids over a broad range of infusion rates. Its features include:
• Uses only standard Baxter solution administration
sets.
• Configurable settings allow the pump to be custom tailored to best suit the hospital's needs.
• Computer control capability allows remote control
or monitoring of the Flo-Gard® 6201 pump via a
standard RS232-C interface.
• Pumps a wide variety of fluids, including blood and
fat emulsions.
• Suitable for use in epidural administration.
• Safety clamp automatically occludes the tubing
when the pump door is opened.
• Occlusion sensors detect both upstream and downstream restrictions. Sensitivity of the downstream
occlusion sensor is selectable through the pump's
configuration.
• Flow check display shows resistance to flow.
• Ultrasonic air-in-line detector. Sensitivity of the air
detector is selectable through the pump's configuration.
• The Programmed Delivery Profile (PDP) enables
manual programming or ramped calculation of up to
10 sequential infusion programs for situations
where multiple flow rates are indicated.
• Slide clamp loading option provides flow shutoff
when I.V. set is removed from the pump.
• Locking control panel helps prevent patient tampering.
• An independent secondary medication program. The
pump automatically switches over to the primary
program upon completion.
• Volume-Time programming automatically calculates flow rate.
• Automatic self-test routine checks for proper function before use.
• Five-hour memory retains infusion data after
power-off.
• Easily replaceable fuse, battery, and power cord.
